Genome-Wide Screen Reveals Valosin-Containing Protein Requirement for Coronavirus Exit from Endosomes

Cell lines and viruses.

H1299 cells were propagated in RPMI 1640 medium containing 10 mM HEPES and 10% fetal bovine serum (FBS). H1299 cells were transfected with PXJ41neo vector encoding renilla luciferase and grown in medium containing 500 μg/ml of G418 (Sigma-Aldrich, St. Louis, MO) for 3 weeks before expansion of an antibiotic-resistant cell line (H1299-RL). Huh7 cells were maintained in Dulbecco modified Eagle medium (DMEM) supplemented with 10% FBS at 37°C in a 5% CO₂ incubator.

The Vero cell-adapted Beaudette strain of recombinant infectious bronchitis virus luciferase (IBV-Luc), with its open reading frame (ORF) 3a-3b replaced with the firefly luciferase gene using an in vitro ligation protocol (20), was generated by infection of Vero cells with IBV-Luc at a multiplicity of infection (MOI) of approximately 0.1 in serum-free DMEM followed by 20 h of incubation. IBV stocks were prepared through lysis of infected cells with three repeated freeze-thaw cycles. Lysates were spun down at 10,000 relative centrifugal force (RCF) to remove cell debris and stored at −80°C until use. Recombinant virus expressing IBV-N fused to a Flag epitope (IBV-N-Flag) was also generated using similar protocols (21).

The HCoV-229E strain (ATCC VR-740) used in this study was directly purchased from the ATCC.

Chemical inhibitors.

MG132, bafilomycin A1 (Baf-A1), brefeldin A (BFA), and cycloheximide were purchased from Calbiochem Merck Millipore (Billerica, MA), while Golgicide A was from Sigma-Aldrich.

siRNA screen assay.

The commercial siRNA library (Dharmacon siGenome) (Thermo-Fisher Scientific, San Jose, CA) was spotted in 384-well black μClear plates (Grenier Bio-One, Frickenhausen, Germany). Using reverse transfection, siRNAs were transiently transfected at a final concentration of 25 nM per well using 0.25 μl DharmaFECT2 reagent in 7.25 μl of RPMI medium, according to the manufacturer's protocol. After 20 min of complex formation, cells were dispensed at a density of 3,000 cells per well using a Multidrop Combi dispenser (Thermo-Fisher Scientific). Medium was removed at 72 h posttransfection, and cells were washed with phosphate-buffered saline (PBS) twice before infection with IBV-Luc for 16 h. Cells were harvested with a Dual-Glo system (Promega, Madison, WI), and luminescence signals for both firefly and renilla luciferase activities were acquired with an Infinite M200 luminometer (Tecan, Durham, NC).

Data formatting, normalization, and screen quality control.

Screen quality control was performed with ScreenSifter (www.screensifter.com). Each replicate's firefly and renilla luciferase scores were normalized by z-score by plate: Z = (X_i − X_m)/σ_x, where X_i is the firefly signal intensity of the gene i, X_m is the mean firefly signal intensities of all the genes per plate, and σ_x is the standard deviation [SD] of firefly signal intensities of the genes per plate). After normalization, the Pearson correlation of firefly scores was 0.71.

Gene annotation and subcellular localization, protein networks, and comparison of screens.

Annotation information was from Gene Ontology (GO) (22), GeneCards (www.genecards.org) (23), and NCBI (http://www.ncbi.nlm.nih.gov/gene). Gene enrichment was analyzed using DAVIDS bioinformatics (http://david.abcc.ncifcrf.gov/) (24) and ScreenSifter. The protein network was created using a combination of STRING (http://string-db.org/) (25), Cytoscape, and ScreenSifter.

siRNAs.

siRNAs for primary and secondary screens were from Dharmacon's siGenome series. Pooled siRNA against Arf1, GBF1, CUL3, RBX1, and NEDD8 was from Dharmacon OnTargetPlus. One siRNA against valosin-containing protein (VCP) (sense strand, 5′-AAGUAGGGUAUGAUGACAUUG-3′; antisense strand, 5′-CAAUGUCAUCAUACCCUACUU-3′) was from Sigma-Aldrich.

Western blotting.

Anti-IBV-N, anti-IBV-S, and anti-NS3 antibodies (1:4,000) were raised as previously described (26). Mouse monoclonal antibodies against double-stranded RNA (dsRNA) were purchased from Scions, Hungary. Antibodies against β-tubulin (1:1,000), actin (1:1,000), and VCP (1:1,000) were purchased from Sigma-Aldrich, and antibodies against EEA1 (early endosomal antigen 1) (1:500), GBF1 (1:1,000), and Arf1 (1:1,000) were obtained from Abcam (Cambridge, MA).

Immunofluorescence.

Cells on coverslips were fixed with 4% formaldehyde, permeabilized with 0.2% Triton X-100, and incubated with the following antibodies: mouse anti-dsRNA (English & Scientific Consulting Bt., Hungary) (1:500), rabbit anti-Flag (Sigma-Aldrich) (1:250), mouse anti-Flag (Sigma-Aldrich) (1:250), and mouse anti-EEA1 (BD Biosciences, Franklin Lakes, NJ) (1:300).

Viral plaque assay and 50% tissue culture infective dose (TCID₅₀) method.

Viral titers for IBV infection were determined using plaque assays. Briefly, Vero cells were seeded into 6-well plates 24 h prior to infection with 200 μl of 10-fold-serially diluted virus stock. After 1 h of absorption at 37°C, unbound virus particles were removed and cells were washed twice with PBS and maintained in 2.5 ml of DMEM containing 1% FBS and 1% carboxymethyl cellulose for 3 days. The cells were fixed with 4% paraformaldehyde and then stained with 0.1% toluidine blue. The number of plaques was counted, and the virus titer was calculated as PFU per milliliter.

Viral titers of HCoV-229E were also determined using the median tissue culture infectious dose (TCID₅₀) per milliliter in Huh7 cells seeded in 96-well microplates.

Subcellular fractionation.

Reverse transfection of 4 million cells was performed with siRNAs at a final concentration of 30 nM per well using 160 μl DharmaFECT2 in 1.6 ml of RPMI medium. At 72 h posttransfection, cells were incubated with IBV (MOI, 0.25) for 4 h at 37°C. Infected cells were washed with ice-cold PBS, disrupted using a cell scraper in homogenization buffer (HB) (250 mM sucrose, pH 7.4, Tris, 1 mM EDTA) in the presence of protease (Complete EDTA-Free; Roche Applied Science, Indianapolis, IN) and phosphatase (PhosphoHalt; Roche Applied Science) inhibitors, and homogenized using a 22-gauge needle. Postnuclear supernatant (PNS) was obtained after centrifugation at 2,000 × g for 5 min at 4°C, and crude separation of the endosomal fractions was achieved via a sucrose flotation discontinuous gradient. The sucrose concentration of the PNS was adjusted to 40.6% by the addition of 62% sucrose (1:1.2, vol/vol), and the PNS was loaded on the bottom of an SW41 ultracentrifuge tube (Beckman, Fullerton, CA). The suspension was overlaid sequentially with 35% sucrose (2.5 ml), 25% sucrose (2 ml), and finally HB (1.5 ml). After 1 h of centrifugation at 100,000 × g at 4°C, 1-ml fractions were collected and subjected to RNA and protein extraction using TRIzol reagent (Invitrogen, Carlsbad, CA), according to the manufacturer's protocol.

Identification of cellular factors involved in coronavirus replication.

The infectious bronchitis virus (IBV) was used as a model coronavirus for its ease of large-scale handling and genetic manipulation. We conducted the screen using an siRNA pool library targeting 21,121 different genes in H1299 cells, a lung carcinoma cell line permissive for IBV infection (27) (Fig. 1A).

At 72 h post-siRNA transfection, cells were infected with IBV-Luc, a recombinant strain of IBV expressing firefly luciferase (20). Firefly luminescence was measured at 16 h postinfection (hpi), which corresponds to peak firefly activity and includes some secondary infection of neighboring cells (data not shown). It should theoretically allow identification of host factors involved at any stage of infection.

To assess RNAi-associated cellular toxicity, H1299 cells were stably transfected with renilla luciferase, whose signal correlates with cell number. To eliminate false positives, samples with low cell numbers are usually excluded (28, 29, 30). However, this thresholding can lead to false negatives, genes with a real impact on viral infection but also a certain depletion-associated cytotoxicity. To optimize selection, we plotted renilla against firefly average luciferase z-scores. For most wells, there was a direct correlation between the two signals. However, this trend deviated from linearity at higher renilla luciferase values, suggesting that virus production was limited.

To confirm this viral replication saturation at high cell densities, a range of 2,500 to 12,000 cells/well was infected with IBV-Luc. Firefly signal increased linearly with cell density but saturated above ∼7,500 cells/well (data not shown). Under screen conditions, cellular density was estimated to rise from ∼3,000 to a maximum of ∼10,000 cells (>95% confluence) after 3 days of culture, thus falling within saturation range. The infection plateau was not due to a limiting amount of infectious particles, as an increasing multiplicity of infection (MOI) only marginally increased firefly luciferase activity (data not shown). Instead, a less efficient infection process due to high cell confluence is a likely explanation.

The Michaelis-Menten equation was empirically found to best account for this saturation effect in the genome-wide screen. By using this equation and setting a threshold at 2.5 standard deviations (SD) away from nontargeting controls, we identified 263 siRNA pools decreasing IBV firefly luciferase activity when silenced. On the other hand, enhancement of virus replication by 130 siRNA pools suggests that the corresponding genes may have protective roles against coronavirus infection (Fig. 1D).

Eighty-three cellular factors validated by at least two independent RNAs.

Of the 263 siRNA pools identified as supporting coronavirus infection, those found not to correspond to mRNAs in the current NCBI database (pseudogenes, RNA genes, or withdrawn mRNA records) were excluded from further analysis. The remaining 225 siRNA pools were subjected to a validation screen with each of the four siRNAs from the pool tested individually. Eighty-three (39%) of these pools had at least two out of four siRNAs that significantly (2 SD) decreased IBV replication compared to the nontargeting control and thus are unlikely to be due to off-target effects. Thus, we propose that the 83 corresponding genes are host factors required for IBV infection (Fig. 1C).

GO analysis.

Using Gene Ontology (GO), 76.2%, 70%, and 66.2% of the 83 genes were classified as involved in biological processes, cellular components, and molecular processes, respectively (Fig. 1D). A significant number of proteins localized to membranous compartments in the cell (n = 19), including those residing on the plasma membrane (n = 9), endoplasmic reticulum (ER) (n = 3), and Golgi apparatus (n = 5) (Fig. 1E), consistent with the known extensive interactions and modifications of the host membranous structures for virus entry, fusion, replication, and secretion (31, 32).

In spite of coronavirus replication and transcription occurring almost exclusively in the cytoplasm, proteins localized to the nucleus were also enriched (n = 38), with approximately one-third (n = 13) residing also in the nucleolus (Fig. 1E). This subcellular localization is due in part to genes involved in RNA splicing and transcription regulation (Fig. 1D; also see below).

Proteins in cellular processes involved in coronavirus replication are enriched in the screen results.

Among the biological processes GO, RNA splicing appeared prominently (Fig. 1D), and several other genes were associated with the spliceosomal cellular compartment GO. Together, this group of genes was largely represented among hits (Fig. 2A). The screen identified two members of the heterogenous nuclear ribonucleoprotein (hnRNP) family, hnRNP L and hnRNP N3, which have been recently identified to bind to IBV N protein. They are closely related to a known regulator of coronavirus, hnRNP A1, and form part of an interaction network that connects to coronavirus RNA and protein (NSP12) (Fig. 2B). Other members of this potential network include 10 other genes (CDC5L, CWC15, DHX8, PLRG1, PRPF18, PRPF6, SART1, SNRPD1, U2AF1, and U2AF2) that either have been connected to hnRNPs or have a proposed function in the spliceosome (Fig. 2B).

Another host process regulated in response to viral infection is protein synthesis. The eukaryotic translation initiation factor 3, subunit E (eIF3f), identified in our screen, interacts with six other known coronavirus-interacting proteins (Fig. 2C). Among them are two other members of the eIF3 family that had been previously identified to be involved in SARS-CoV replication and to be important for modulating host translation of inhibitory cytokines and chemokines (18, 33). Two other factors identified, PES1 and RSL24D1, also interact with eIF3E and with factors otherwise known to interact with viral proteins (Fig. 2C).

Membrane trafficking genes.

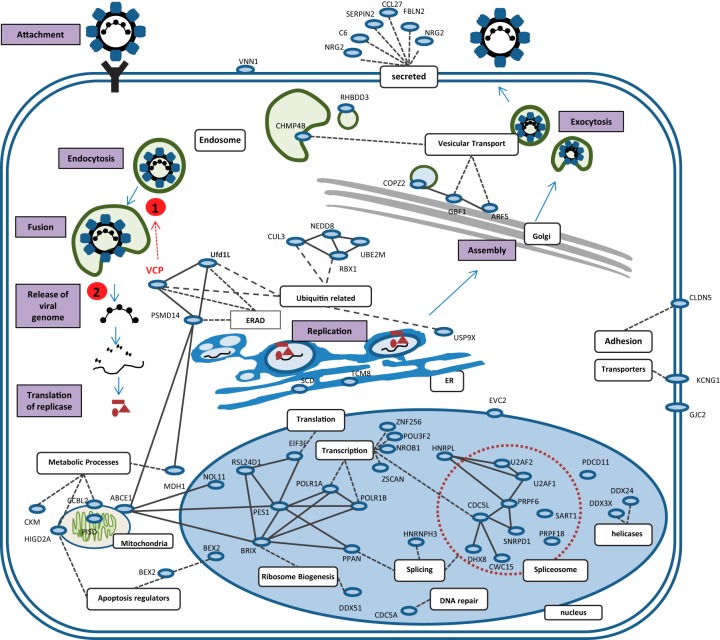

Several hits were linked to a cellular compartment GO linked to membranes and were known regulators of membrane traffic processes (Fig. 2D). Among them are Vps4B, also known as the charged multivesicular protein 4b (CHMP4B), which is a key component of the ESCRT complex that regulates multivesicular body sorting, and the Golgi apparatus-associated brefeldin A (BFA)-resistant GEF 1 (GBF1), which has been shown to be required for multiple viruses (34, 35). GBF1 is a regulator of ADP-ribosylation factors such as ADP-ribosylation factor 1 (Arf1) (36). Despite not being a direct “hit” in our screen, Arf1 scored close to the threshold. Interestingly, the related Arf5 scored high in our screen and was recently identified as required for dengue virus (37). In a screen targeting the druggable genome library, Burkard et al. identified several proteins mediating late endosomal maturation as being important for mouse hepatitis virus (MHV) infection (38). These proteins, however, were dispensable for IBV infection (not shown), reflecting the fact that different endocytotic processes are probably required by specific members of the coronavirus family.

The UPS is highly represented.

The interaction network established above identified seven factors associated with the ubiquitin-proteasome system (UPS), interacting extensively among themselves as well as with other known CoV-interacting proteins (Fig. 2E). In particular, six known CoV-interacting proteins interact with the Nedd8 protein, and our screen identified three other Nedd8-interacting proteins. Two of them, Cullin-3 (Cul3) and ring box 1 (Rbx1), form the core of the BTB-CUL3-RBX1 E3 ligase complex (39). Activation of this complex requires covalent attachment of Nedd8 by ube2m, a ubiquitin-conjugating enzyme also identified in our screen (40).

The requirement for Cul3, Rbx1, and Nedd8 was confirmed with an independent secondary assay using Western blot analysis against viral protein at 16 hpi but also 8 hpi. A reduction in viral protein expression is associated with knockdowns of these genes at both time points, suggesting a requirement for these proteins during early infection stages (data not shown). It is not clear yet what the relevant ubiquitinated substrates are, but it is noticeable that depletion of PSMD14 and other proteasome subunits had a strong inhibitory effect on viral infection. This proteasome requirement is also consistent with previous findings on the inhibitory effect of proteasome inhibitors on CoV replication (41, 42).

Our screen results also implicate two other UPS-related proteins: valosin-containing protein (VCP/p97) and ubiquitin fusion degradation protein 1-like protein (Ufd1L) (Fig. 2E). The ternary complex of Vcp-Ufd1L-Npl4 is one of the key mediators of ER-associated degradation process (ERAD) (43, 44). All three components were identified as primary hits in our screen, although only VCP and Ufd1L could be validated in the deconvoluted screen.

As depletion of VCP induced one of the strongest inhibitory effects on IBV replication and had not been identified as a host factor for coronavirus infection before, we chose to further characterize its role in coronavirus infection.

We first compared multiple anti-VCP siRNAs. While the screen siRNA pool (siVCP-Pool) reduced IBV-Luc activity by 14.4-fold, the 4 individual siRNAs in the pool (siVCP-05, -06, -07, and -08) reduced IBV-Luc activity by 13-, 10-, 4-, and 6-fold, respectively. In addition, another custom-designed siRNA (siVCP-Sig) resulted in a 23-fold reduction (data not shown). This siRNA was used in subsequent experiments.

VCP is required for human coronavirus infection.

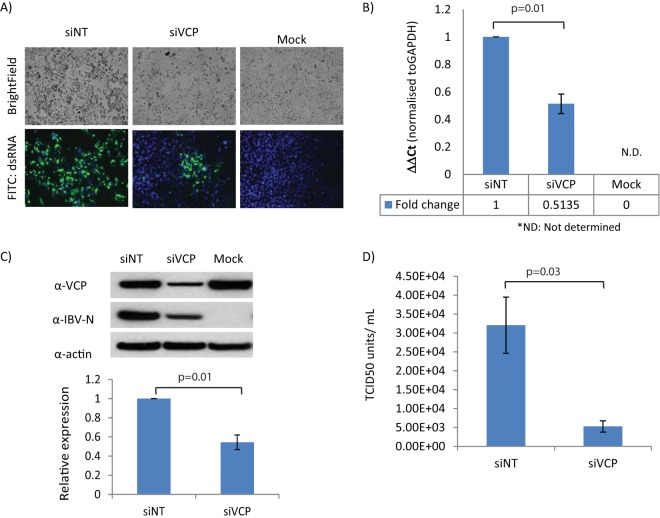

To investigate if VCP is required by coronaviruses in general, the requirement for VCP in human coronavirus 229E (HCoV-229E) infection was determined. HCoV-229E infection of susceptible Huh7 cells resulted in more extensive cytopathic effects and was observed in susceptible Huh7 cells treated with control siRNA rather than those with VCP silenced. In addition, when these cells were stained for the presence of dsRNA, the levels of dsRNA detected were significantly lower in VCP-knockdown cells than in control (Fig. 3A). The lower rate of viral replication associated with VCP depletion was also confirmed with quantitative real-time PCR using primers specific to HCoV-229E genomic RNA. Viral genomic RNA detected in cells treated with siVCP was 2-fold lower than that in controls (Fig. 3B). Antibodies against IBV nucleocapsid protein (IBV-N), which cross-react with HCoV-229E nucleocapsid protein (N), were also used to determine expression of viral protein in the absence of VCP. In these experiments, depletion of VCP with RNAi consistently resulted in a decrease in HCoV-N protein expression (Fig. 3C).

Finally, the titers of viral particles released in culture supernatant were determined by the method of median tissue culture infectious dose (TCID₅₀) per milliliter. Consistent with all the previous results, the titer of viral particles released from siVCP-treated cells was significantly lower than that in control (Fig. 3D). The reduction in viral titer was confirmed independently with standard viral plaque assay (Fig. 3D). Collectively, the results suggest that VCP may be required for coronavirus in general.

VCP is involved in early stages of infection.

To examine at which stage VCP is required, IBV-infected cells were harvested at 10 hpi, when there is minimal secretion of virus and secondary infection. Silencing of VCP reduced firefly luciferase activity by nearly 8-fold compared with cells treated with nontargeting siRNA control (Fig. 4A), suggesting a requirement in the initial phase of infection.

The production of double-stranded RNA (dsRNA) intermediates, a hallmark of viral transcription/replication, at 10 hpi was evaluated by immunofluorescence using a dsRNA-specific monoclonal antibody, revealing that silencing of VCP significantly reduced dsRNA levels (Fig. 4B). These results are consistent with a concomitant reduction in viral protein expression, as reduced levels of IBV-S and IBV-N proteins, revealed by immunofluorescence and Western blot analysis, respectively (Fig. 4B and C), were also associated with VCP depletion. Furthermore, syncytium formation, as revealed by the IBV-S antibody, was evident in nontargeting siRNA (siNT)-treated control cells but not observed in cells depleted of VCP (Fig. 4B).

VCP is not required for viral attachment to cell surface and virus entry.

To examine virion attachment to cell surface, cells treated with either control siNT or siVCP were incubated with IBV-Luc at an MOI of approximately 0.5 for 1 h at 4°C to allow for virus adsorption. Unbound virus particles were removed by washing, and bound viruses were quantified using standard plaque assay and did not reveal any decrease (Fig. 4D). Similarly, quantification of bound virus using reverse transcription-PCR (RT-PCR) did not result in a decreased amount of virus-positive genomic RNA detected on the surface of the infected VCP-depleted cells (Fig. 4E), suggesting that VCP is not required for the virions to bind to the host cell.

Next, we tested virus internalization by incubating cells first with IBV-Luc at an MOI of approximately 0.5 for 1 h at 4°C before washing and temperature shift to 37°C for an additional 1 h to allow synchronized entry. Proteinase K was then added to remove uninternalized virus before harvesting infected cells by freeze-thawing. Internalized virions were quantified by both titration plaque assay (Fig. 4F) and RT-PCR (Fig. 4G), and no significant reduction was detected in VCP-depleted cells, suggesting that VCP is also not required for virus entry.

Silencing of VCP inhibits early-stage degradation of viral N protein.

While monitoring the amount of the viral protein N at early time points, we observed higher levels of N protein in VCP-depleted cells at 4 hpi (Fig. 5A). This effect is transient, as by 8 hpi, N protein levels in control cells were dramatically increased over those at 4 hpi and became significantly higher than those in VCP-depleted cells (Fig. 5A), where N protein remained constant, which is consistent with the block in the infectious process detected with other methods.

To determine if the difference at 4 hpi could be observed for other genes, we tested siGBF1 but did not find similar elevated N protein levels (Fig. 5B).

Typically, at 4 hpi, only a minimal amount of viral RNA and protein can be detected (data not shown). We therefore hypothesized that the N protein detected corresponds to the virion-associated rather than the neosynthesized pool. Consistent with this hypothesis, in cells pretreated with 10 μg/ml of cycloheximide, a protein translation inhibitor, levels of N protein were not affected in control or siVCP-treated cells (Fig. 5C). In contrast, at 8 h, these levels were dramatically reduced in control cells, indicating that most of the N protein detected at this time point is neosynthesized. Interestingly, in VCP-depleted cells, N protein levels were still not affected at 8 h, indicating that the IBV-N detected there came mostly from the infecting virions.

These data suggest that IBV-N associated with infecting viruses is degraded at early stages of infection. Interestingly, cells pretreated with the proteasome inhibitor MG132 for 2 h prior to infection display significantly increased N protein levels at 4 hpi compared with control and dimethyl sulfoxide (DMSO)-treated cells (Fig. 5D). Treatment with either 5 μg/ml BFA or 10 μM Golgicide A1 did not result in increased N levels, consistent with the GBF1 depletion experiment results. On the other hand, treatment with bafilomycin A1 (Baf-A1), which targets proton pump ATPases, was comparable to MG132 in effect (Fig. 5D).

Together, our results suggest that the N protein associated with infecting virions is degraded before a new pool is neosynthesized and that this process requires endosomal acidification and proteasome function.

Silencing of VCP results in accumulation of virus in early endosomes.

Since VCP has been linked to the ubiquitin-proteasome system, a possible explanation for the accumulation of virion-associated N protein is that VCP is directly required for its degradation. In this model, VCP would act after the release of the viral nucleoprotein from the endosomal system. However, during the course of this study, VCP was reported to be implicated in endosomal maturation after VCP depletion (45, 46) and could therefore result in a trapping of viral particles in endosomes before cytosolic release.

To distinguish between these possibilities, the presence of intracellular viral particles was tested by immunofluorescence. Since the IBV-N antibody is incompatible with immunofluorescence, cells were infected with another recombinant virus expressing IBV-N fused to a Flag epitope (IBV-N-Flag) (21). The number of Flag-positive vesicular structures was counted in 10 random cells from each treatment group and compared with the control group, demonstrating that siVCP-treated cells contained more IBV-N-positive vesicles (data not shown).

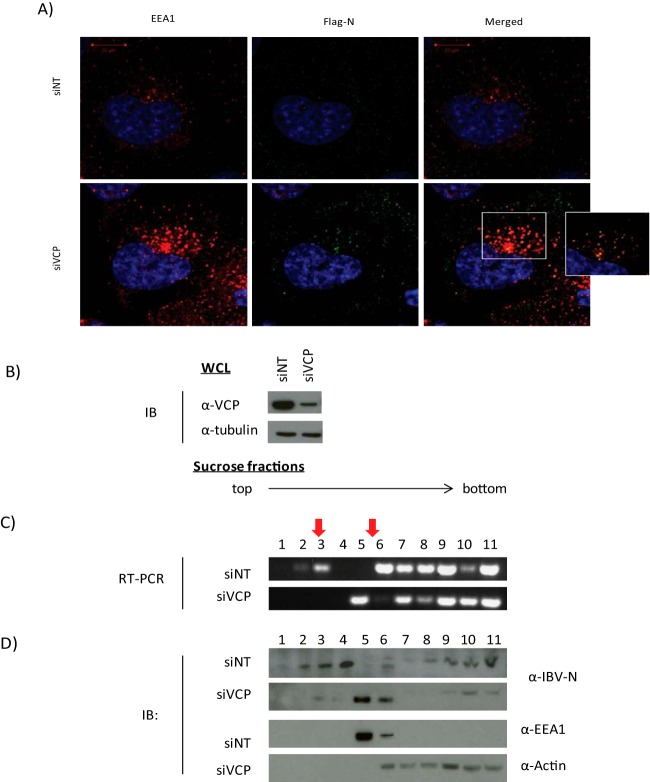

Infected cells were also costained for the early endosomal antigen 1 (EEA1), and numerous and enlarged vesicles positive for EEA1 were observed in siVCP-treated cells (Fig. 6A). Anti-Flag staining revealed that virion-associated IBV-N protein colocalized extensively with these enlarged endosome clusters (Fig. 6A), suggesting that virion particles accumulate in an endosomal compartment in the absence of VCP.

IBV-infected cells were next subjected to subcellular fractionation using a sucrose flotation step and discontinuous gradient 4 h after infection. VCP depletion was verified by Western blotting (Fig. 6B). Using a modified protocol first described by Gruenberg and Gorvel for endosomal fractionation (47), late and early endosomes were concentrated in the 8%/25% (fractions 2 and 3) and 25%/35% (fractions 5 and 6) interphases, respectively. TRIzol extraction was used to obtain both RNA and protein to detect the presence of virus particles via RT-PCR or Western blot analysis, respectively.

In both control cells and cells treated with siVCP, most of the virus genomic RNA was detected in heavier fractions (fractions 7 to 11). RNA detected from these fractions is likely to come from viral material present in the cytosol as well as that released during cell lysis. Viral RNA was also detected in fractions 2 and 3 (late endosome fractions) in the control group. In contrast, in samples where VCP was silenced, viral RNA was nearly undetectable in the late endosome fractions (Fig. 6C). Instead, viral RNA was observed to accumulate in early endosomes (fraction 5) together with EEA1 (Fig. 6D). Analysis of the viral protein yielded similar results. When probed with antibodies against N protein, knocking down VCP resulted in viral proteins accumulating in fractions that were also enriched with EEA1 (Fig. 6C and D). These results suggest that, in the absence of VCP, the infecting virus accumulates in an early endosomal compartment.
